Hydro 18
The HYDRO 18 fireplace with integrated water system has a rated power 19kW and is designed for space heating to 150 sq. m, using a radiators.
Product images

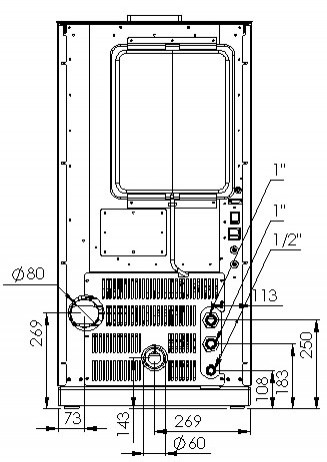

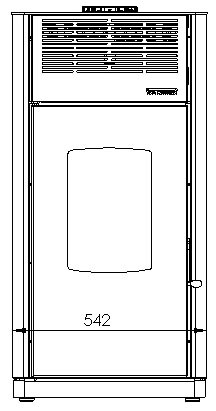

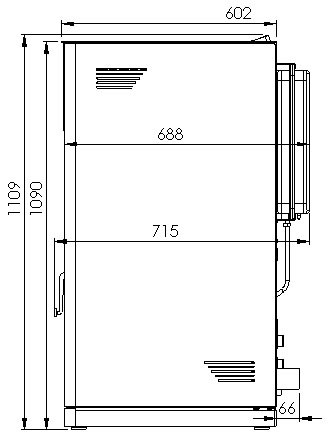

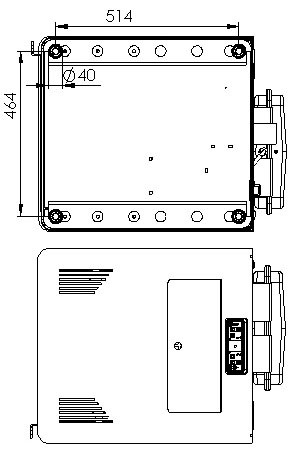

Product dimmensions
Burning characteristics
Electric characteristics
Nominal power (kW)
19
Power supply voltage (V)
220V/50Hz
Efficiency at nominal power (%)
91
Average power consumption (W)
60
CO emissions (13)% O2 at nominal power (ppm)
0.0063
Consumption on ignition (W)
300
Mass of smoke at nominal power (g/s)
12.65
Protection of the grid (А)
3.15
Reduced power (kW)
6
Protection of the controller (A)
5
Efficiency at reduced power (%)
93
Maximum temperature of the flue gas (°C)
123
Autonomy of combustion min/max (h)
16/51
Minimum natural draft (Pa)
20
Fuel consumption min/max (kg/h)
1.0/3.39
Maximum heat power for heating water (kW)
15
Maximum operating presure (bar)
2.5
Expansion vessel (liter)
12
Boiler capacity (liter)
20
Tank capacity (liter)
55
Heating capacity (m²)
110
Tare weight (kg)
150
Flue diameter (mm)
80
Inlet air pipe diameter (mm)
60
