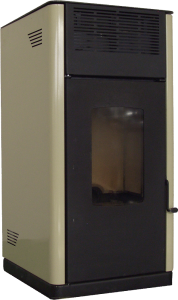

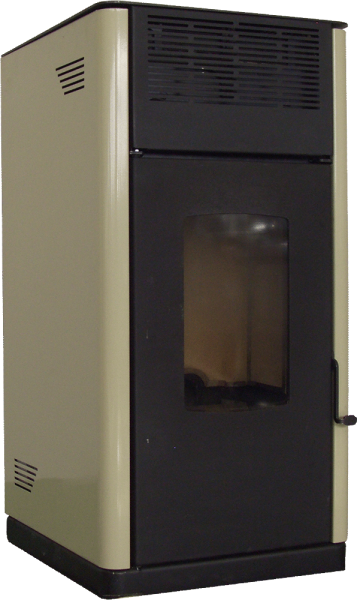

Hydro 22
The HYDRO 22 fireplace with integrated water system has a rated power 24.26kW and is designed for space heating to 150 sq. m, using a radiators.

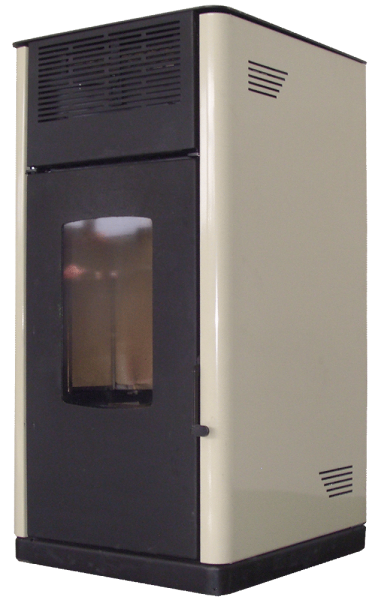

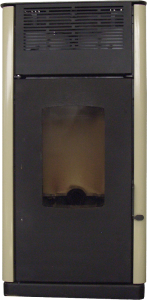

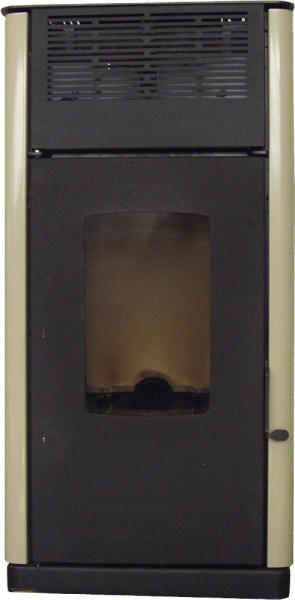

Product images

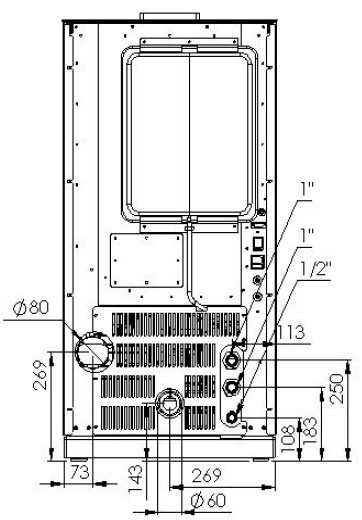

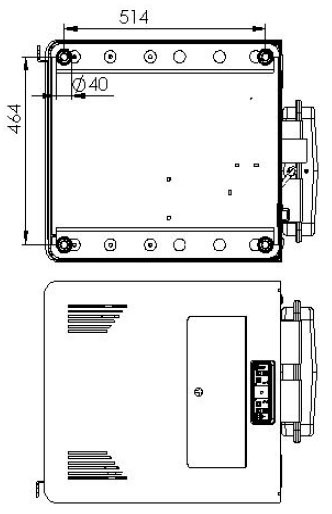

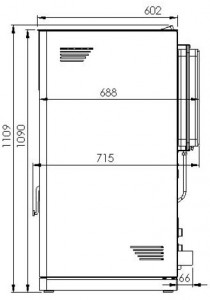

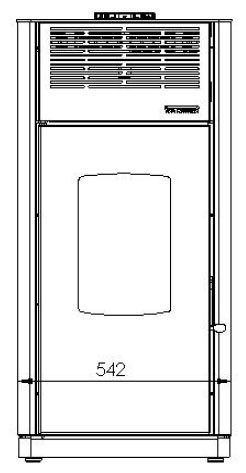

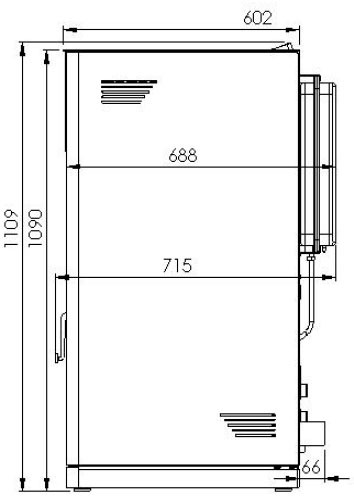

Product dimmensions
Burning characteristics
Electric characteristics
Nominal power (kW)
24.26
Power supply voltage (V)
220V/50Hz
Efficiency at nominal power (%)
91.96
Average power consumption (W)
60
CO emissions (13)% O2 at nominal power (ppm)
0.0063
Consumption on ignition (W)
300
Mass of smoke at nominal power (g/s)
15.49
Protection of the grid (А)
3.15
Reduced power (kW)
7.46
Protection of the controller (A)
5
Efficiency at reduced power (%)
93
Maximum temperature of the flue gas (°C)
123
Autonomy of combustion min/max (h)
13/70
Minimum natural draft (Pa)
20
Fuel consumption min/max (kg/h)
0.63/4.3
Maximum heat power for heating water (kW)
19.12
Maximum operating presure (bar)
2.5
Expansion vessel (liter)
12
Boiler capacity (liter)
20
Tank capacity (liter)
55
Heating capacity (m²)
150
Tare weight (kg)
200
Flue diameter (mm)
80
Inlet air pipe diameter (mm)
60
